What Is a Culvert? Types, Materials and Design Considerations

A culvert is a structure that channels water beneath a road, railway, trail or embankment. Culverts are essential infrastructure elements in highways design, flood management and ecological connectivity. They range from simple culvert pipe installations under farm tracks to large-span structures carrying watercourses beneath motorways.

Culvert design in the UK is governed by standards including DMRB CD 354 (formerly BD 31/01) and CIRIA C689. Specifiers must account for hydraulic capacity, structural loading, foundation conditions and design life. Corrugated steel culvert pipe — such as HelCor® — offers significant advantages over precast concrete: lighter weight for faster installation, flexibility to accommodate differential settlement, and a verified design life exceeding 100 years with hot-dip galvanised protection.

Corrugated Steel Culvert Pipe: Why HelCor® Outperforms Concrete

Traditional concrete culvert pipes are heavy, require substantial cranage and are prone to joint failure in soft ground. HelCor® corrugated steel culvert pipe eliminates these issues. Each pipe section is helically wound from continuously galvanised steel strip, creating a seamless profile with consistent corrugation geometry. This delivers superior ring stiffness at a fraction of the weight — a 1200 mm diameter HelCor® pipe weighs approximately 60% less than its concrete equivalent.

For highways authorities and civil engineering contractors, this translates to shorter road closures, reduced plant requirements and lower carbon emissions. An 80-metre culvert installation using HelCor® can be completed in a single day, compared to a week or more for precast concrete. The pipe-arch profile option provides 65–100% greater hydraulic capacity than a circular pipe of the same rise, making it ideal for sites with limited cover depth.

Culvert Applications Across UK Infrastructure

HelCor® culvert pipe is specified across a wide range of UK projects. Highway culverts carrying watercourses beneath trunk roads and motorways benefit from the product’s ability to handle Class 1A loading to DMRB standards. Railway culverts require structures capable of withstanding dynamic rail loading — HelCor® pipes can be buried at depths exceeding 30 metres, providing ample structural reserve.

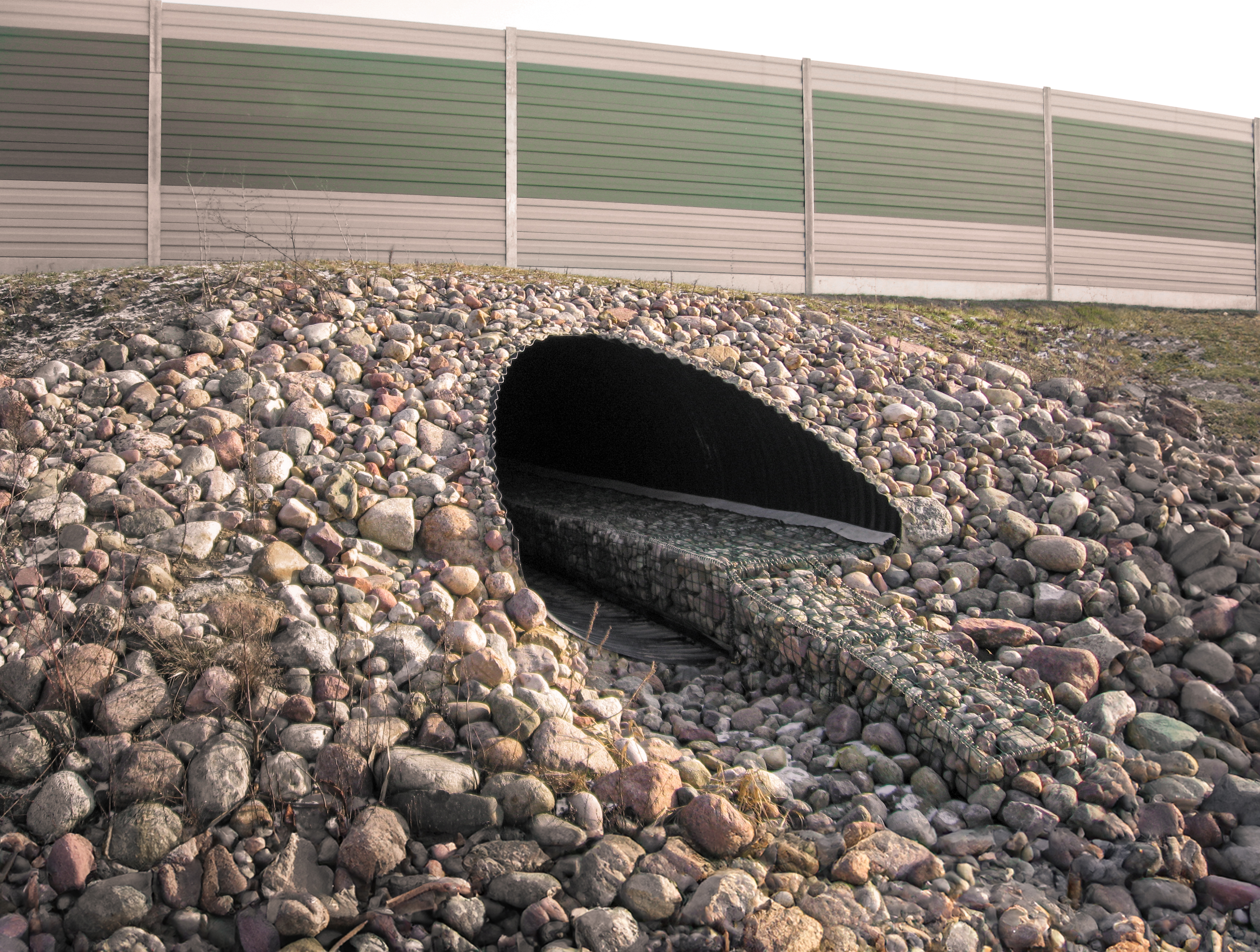

ViaPlate® multi-plate structures extend ViaCon’s culvert range to spans beyond the limits of single-pipe solutions. For projects requiring fish passage or mammal crossing, HelCor® pipes installed with natural bed invert create ecological underpasses that maintain habitat connectivity. Combined with stormwater attenuation solutions, culvert installations can form part of an integrated surface water management strategy compliant with SuDS requirements.

Explore how ViaCon culvert solutions have been delivered on real projects: Fabryczna Street reconstruction and HelCor® culvert replacement in North Yorkshire.
